FILTERS |
|
|
Efficiency Standard |
G4 ISO COARSE > 65 % |
|
Efficiency Optional |
F7 ISO e PM1 > 65 % |
Products
Domestic

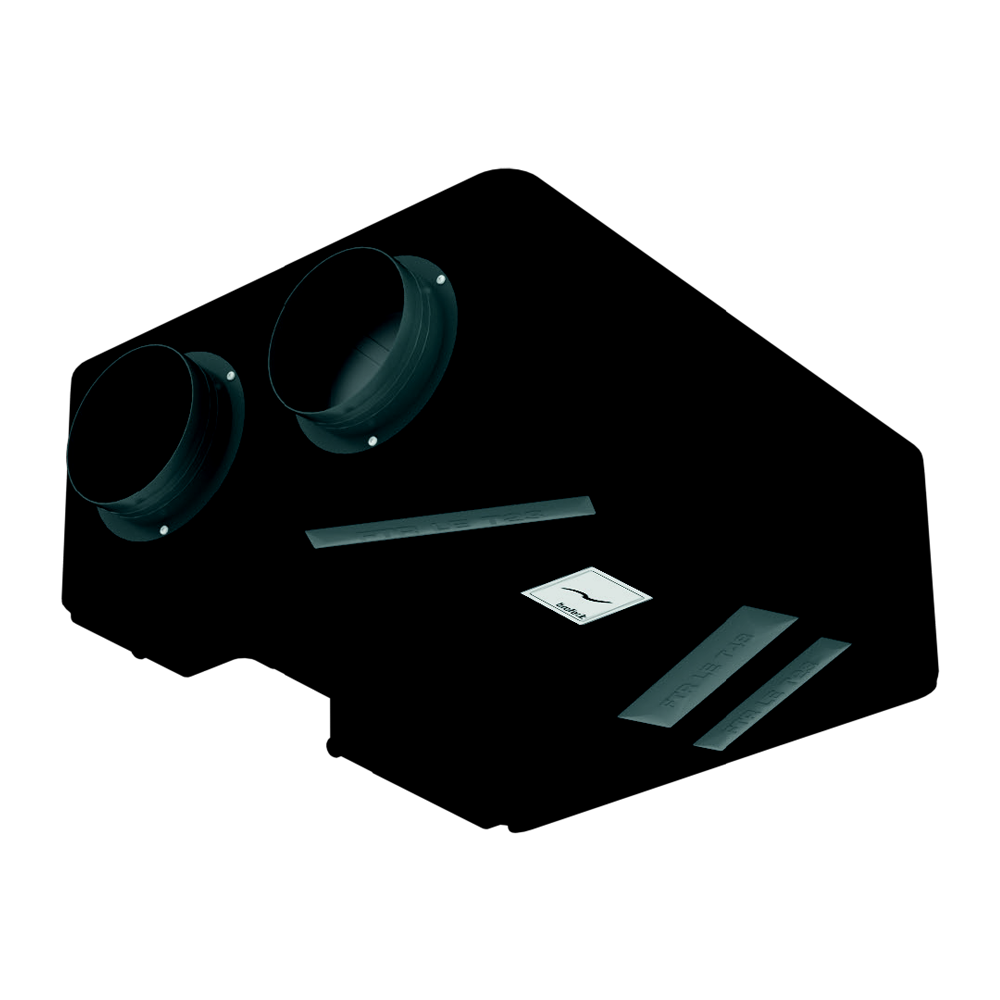

RDCD20
PLUS:
RECOVERY MODULE WITHOUT FANS
USE IN CENTRALIZED SYSTEM HEAT RECOVERY:
heat exchanger of the type in countercurrent entirely made of plastic material. STRUCTURE:
free standing HMPEPS seal, complete of filters ex traction system and drain condensate. FILTERS:
the units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.
Technical data
Dimension
Bottom View
D = 243
E = Ø156
H = 670
I = 770
Internal view
Side view
A = 149
C = 255
F = 620
Front view
B = 550
K = 268
Plan view
Performance diagrams
HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.
HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.
