BRUC

PLUS:
COMMERCIAL HEAT RECOVERY UNIT WITH VERY HIGH EFICIENCY AUTOMATIC BY-PASS INCLUDED
HEAT RECOVERY:
the recuperator is the counterflow type all-aluminium. On the same is installed a condensate drain basin.
STRUCTURE:
the frame is made of aluminium and galvanized steel sandwich sound proof panels. The units are equipped with removable panels for access to the interior and make routine and extraordinary maintenance.
FANS:
FANS: centrifugal double suction with an electric motor directly couple. The motors are 3 speed while the wheels are both statically and dynamically balanced to minimize vibration and noise.
FILTERS:
the units are equipped with standard filter cells wavy synthetic fiber efficiency G4, galvanized steel frame and safety nets in electro galvanized steel wire.
ce
erp2018
a-ventilatore-asincrono
efficiency-90
i-orizzontale-e-verticale
Technical data

BRUC 1000

BRUC 1500

BRUC 2000

BRUC 2500

BRUC 3500

Nominal air flow (mc/h)

1000

1500

2000

2500

3500

Useful static pressure (pa)

170

200

180

240

150

FANS (data for eac fan)

Installed power (W)

373

373

373

550

750

Poles (nr)

4

4

4

4

4

Round (1/min)

1130

1130

1130

1400

1400

Current (A)

2,75

2,75

2,75

4,0

7,8

Rated voltage (V)

230

230

230

230

230

Frequency (HZ)

50

50

50

50

50

Speeds (nr)

3

3

3

3

3

FILTERS

Corrugated acrylic efficiency

G4 ISO COARSE > 65 %

With fresh air temperature < -3°C it is necessary pre-heating.

Dimension

BRUC1000
HORIZONTAL INSTALLATION

Bottom view

B = 1000
E = Ø250
H = 1800

1 = G4 filter efficiency
2 = Condensate drain


BRUC1000
HORIZONTAL INSTALLATION

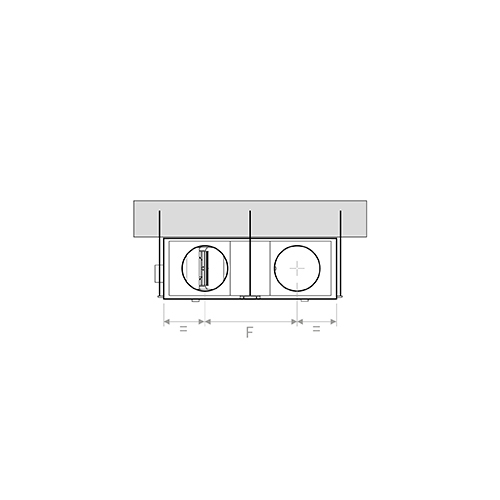

Front view

F = 485


BRUC1000
HORIZONTAL INSTALLATION

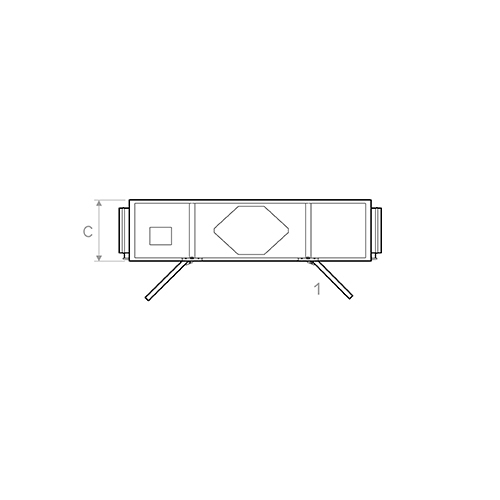

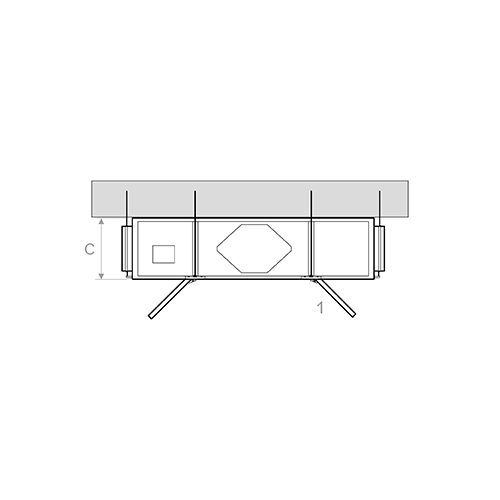

Side view

C = 430

1 = Pannelli d’ispezione


BRUC1000
HORIZONTAL INSTALLATION

Rear view

D = 175
G = 485


BRUC1000
HORIZONTAL INSTALLATION

Top view


BRUC1000
VERTICAL INSTALLATION

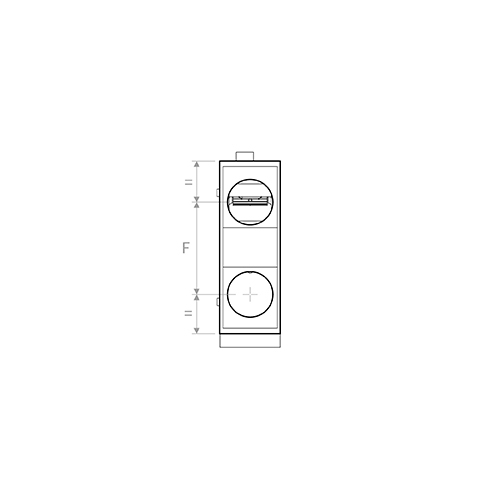

Right side view

F = 485


BRUC1000
VERTICAL INSTALLATION

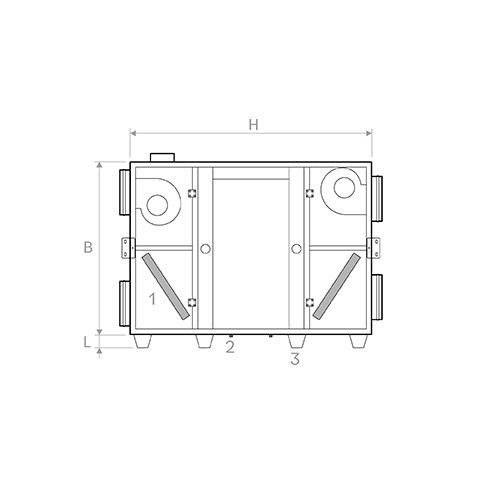

Inspection side

B = 1000
H = 1800
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUC1000


BRUC1000
VERTICAL INSTALLATION

Left side view

D = 175
E = Ø250
G = 485


BRUC1000
VERTICAL INSTALLATION

Upper view

C = 430

1 = Ispection panels


BRUC1500
HORIZONTAL INSTALLATION

Bottom view

B = 1100
E = Ø355
H = 2000

1 = G4 filter efficiency
2 = Condensate drain


BRUC1500
HORIZONTAL INSTALLATION

Front view

F = 498


BRUC1500
HORIZONTAL INSTALLATION

Side view

C = 510

1 = Ispection panels


BRUC1500
HORIZONTAL INSTALLATION

Rear view

D = 255
G = 622


BRUC1500
HORIZONTAL INSTALLATION

Top view


BRUC1500
VERTICAL INSTALLATION

Right side view

F = 498


BRUC1500
VERTICAL INSTALLATION

Inspection side

B = 1100
H = 2000
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUC1520


BRUC1500
VERTICAL INSTALLATION

Left side view

D = 255
E = Ø355
G = 622


BRUC1500
VERTICAL INSTALLATION

Upper view

C = 510

1 = Ispection panels


BRUC2000
HORIZONTAL INSTALLATION

Bottom view

B = 1400
E = Ø355
H = 2000

1 = G4 filter efficiency
2 = Condensate drain


BRUC2000
HORIZONTAL INSTALLATION

Front view

F = 798


BRUC2000
HORIZONTAL INSTALLATION

Side view

C = 510

1 = Ispection panels


BRUC2000
HORIZONTAL INSTALLATION

Rear view

D = 255
G = 922


BRUC2000
HORIZONTAL INSTALLATION

Top view


BRUC2000
VERTICAL INSTALLATION

Right side view

F = 798


BRUC2000
VERTICAL INSTALLATION

Inspection side

B = 1400
H = 2000
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUC1520


BRUC2000
VERTICAL INSTALLATION

Left side view

D = 255
E = Ø355
G = 922


BRUC2000
VERTICAL INSTALLATION

Upper view

C = 510

1 = Ispection panels


BRUC2500
HORIZONTAL INSTALLATION

Bottom view

B = 1400
E = Ø355
H = 2250

1 = G4 filter efficiency
2 = Condensate drain


BRUC2500
HORIZONTAL INSTALLATION

Front view

F = 860


BRUC2500
HORIZONTAL INSTALLATION

Side view

C = 650

1 = Ispection panels


BRUC2500
HORIZONTAL INSTALLATION

Rear view

D = 365
G = 860


BRUC2500
HORIZONTAL INSTALLATION

Top view


BRUC2500
VERTICAL INSTALLATION

Right side view

F = 860


BRUC2500
VERTICAL INSTALLATION

Inspection side

B = 1400
H = 2250
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUC2535


BRUC2500
VERTICAL INSTALLATION

Left side view

D = 365
E = Ø355
G = 860


BRUC2500
VERTICAL INSTALLATION

Upper view

C = 650

1 = Ispection panels


BRUC3500
HORIZONTAL INSTALLATION

Bottom view

B = 1650
E = Ø400
H = 2500

1 = G4 filter efficiency
2 = Condensate drain


BRUC3500
HORIZONTAL INSTALLATION

Front view

F = 985


BRUC3500
HORIZONTAL INSTALLATION

Side view

C = 650

1 = Ispection panels


BRUC3500
HORIZONTAL INSTALLATION

Rear view

D = 365
G = 985


BRUC3500
HORIZONTAL INSTALLATION

Top view


BRUC3500
VERTICAL INSTALLATION

Right side view

F = 985


BRUC3500
VERTICAL INSTALLATION

Inspection side

B = 1650
H = 2500
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUC2535


BRUC3500
VERTICAL INSTALLATION

Left side view

D = 365
E = Ø400
G = 985


BRUC3500
VERTICAL INSTALLATION

Upper view

C = 650

1 = Ispection panels

Performance diagrams

BRUC1000

HORIZONTAL INSTALLATION

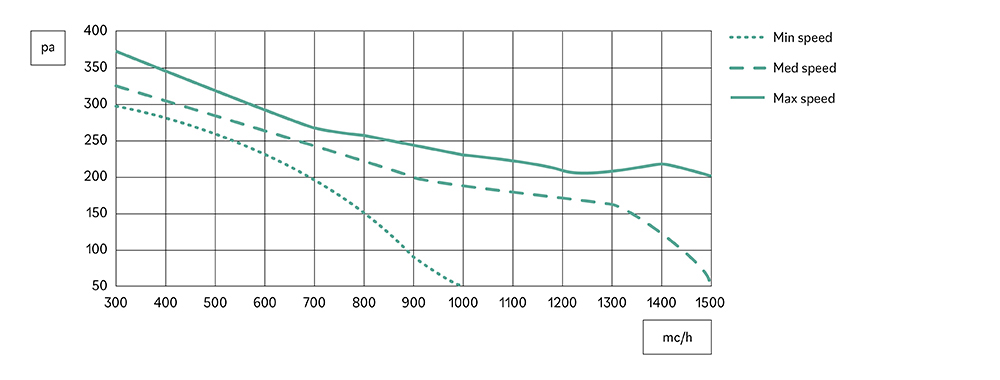

Useful static pressure

BRUC1000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED

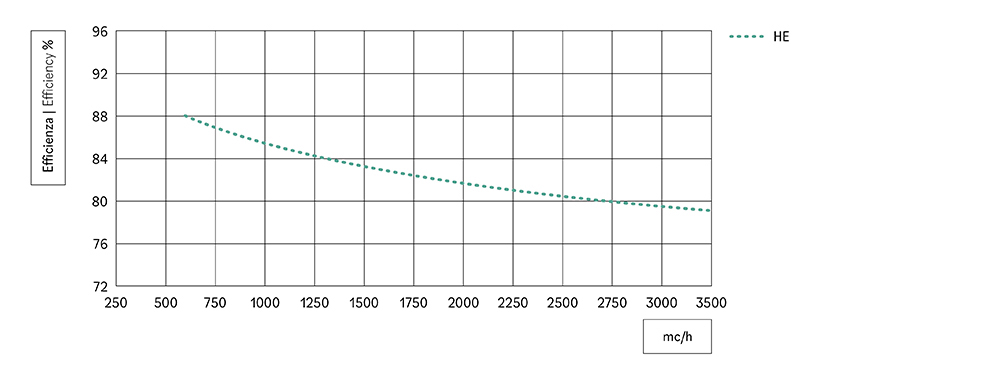

Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUC1000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED

Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUC1500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUC1500

HORIZONTAL INSTALLATION

Useful static pressure

BRUC1500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUC2000

HORIZONTAL INSTALLATION

Useful static pressure

BRUC2000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUC2000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUC2500

HORIZONTAL INSTALLATION

Useful static pressure

BRUC2500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUC2500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUC3500

HORIZONTAL INSTALLATION

Useful static pressure

BRUC3500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUC3500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.
