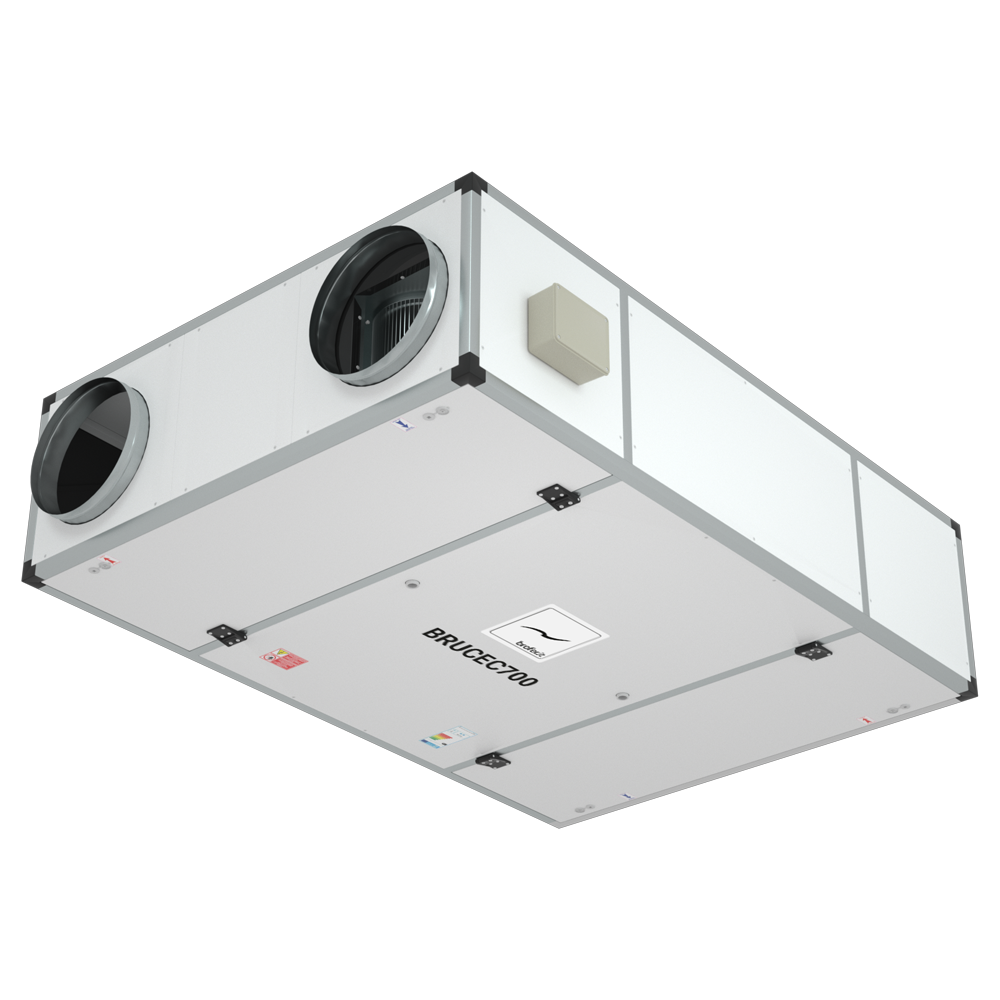

BRUCEC

PLUS:
COMMERCIAL HEAT RECOVERY UNIT WITH VERY HIGH EFICIENCY AUTOMATIC BY-PASS INCLUDED EC MOTORS WITH FREQUENCY CONVERTER
HEAT RECOVERY:
the recuperator is the counterflow type all-aluminium. On the same is installed a condensate drain basin.
STRUCTURE:
the frame is made of aluminium and galvanized steel sandwich sound proof panels. The units are equipped with removable panels for access to the interior and make routine and extraordinary maintenance.
FANS:
plug fan with EC Brushless engine (models BRUCEC700, BRUCEC1000) centrifugal double suction with electric motor with external rotor EC Brushless direct driven complete of frequency converter. Modbus interface (models BRUCEC2000, BRUCEC3500, BRUCEC4500).
FILTERS:
the units are equipped with standard filter cells wavy synthetic fiber efficiency G4, galvanized steel frame and safety nets in electro galvanized steel wire.
ce
erp2018
e-energy-saving
efficiency-90
i-orizzontale-e-verticale
Technical data

BRUCEC700

BRUCEC1000

BRUCEC2000

BRUCEC3500

BRUCEC4500

Nominal air flow (mc/h)

700

1000

2000

3500

4500

Useful static pressure (pa)

110

190

390

240

350

FANS (data for eac fan)

Installed power (W)

113

207

1050

1050

2000

Current (A)

0,8

1,4

4,51

4,53

9,52

Rated voltage (V)

230

230

230

230

230

Frequency (HZ)

50

50

50

50

50

Speeds (nr)

1

1

1

1

1

FILTERS

Corrugated acrylic efficiency

G4 ISO COARSE > 65 %

With fresh air temperature < -3°C it is necessary pre-heating.

Dimension

BRUCEC700
HORIZONTAL INSTALLATION

Bottom view

B = 1000
E = Ø250
H = 1760

1 = G4 filter efficiency
2 = Condensate drain


BRUCEC700
HORIZONTAL INSTALLATION

Front view

F = 485


BRUCEC700
HORIZONTAL INSTALLATION

Side view

C = 390

1 = Ispection panels


BRUCEC700
HORIZONTAL INSTALLATION

Rear view

D = 195
G = 485


BRUCEC700
HORIZONTAL INSTALLATION

Top view


BRUCEC700
VERTICAL INSTALLATION

Right side view

F = 485


BRUCEC700
VERTICAL INSTALLATION

Inspection side

B = 1000
H = 1760
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUCEC0700


BRUCEC700
VERTICAL INSTALLATION

Left side view

D = 175
E = Ø250
G = 485


BRUCEC700
VERTICAL INSTALLATION

Upper view

C = 390

1 = Ispection panels


BRUCEC1000
HORIZONTAL INSTALLATION

Bottom view

B = 1000
E = Ø250
H = 1800

1 = G4 filter efficiency
2 = Condensate drain


BRUCEC1000
HORIZONTAL INSTALLATION

Front view

F = 485
N = 207


BRUCEC1000
HORIZONTAL INSTALLATION

Side view

C = 430

1 = Ispection panels


BRUCEC1000
HORIZONTAL INSTALLATION

Rear view

D = 175
G = 485
M = 308


BRUCEC1000
HORIZONTAL INSTALLATION

Top view


BRUCEC1000
VERTICAL INSTALLATION

Right side view

F = 485
N = 207


BRUCEC1000
VERTICAL INSTALLATION

Inspection side

B = 1000
H = 1800
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUCEC1000


BRUCEC1000
VERTICAL INSTALLATION

Left side view

D = 175
E = Ø250
G = 485
M = 308


BRUCEC1000
VERTICAL INSTALLATION

Upper view

C = 430

1 = Ispection panels


BRUCEC2000
HORIZONTAL INSTALLATION

Bottom view

B = 1100
E = Ø355
H = 2000

1 = G4 filter efficiency
2 = Condensate drain


BRUCEC2000
HORIZONTAL INSTALLATION

Front view

F = 498


BRUCEC2000
HORIZONTAL INSTALLATION

Side view

C = 510

1 = Ispection panels


BRUCEC2000
HORIZONTAL INSTALLATION

Rear view

D = 255
G = 622


BRUCEC2000
HORIZONTAL INSTALLATION

Top view


BRUCEC2000
VERTICAL INSTALLATION

Right side view

F = 498


BRUCEC2000
VERTICAL INSTALLATION

Inspection side

B = 1100
H = 2000
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUCEC2000


BRUCEC2000
VERTICAL INSTALLATION

Left side view

D = 255
E = Ø355
G = 622


BRUCEC2000
VERTICAL INSTALLATION

Upper view

C = 510

1 = Ispection panels


BRUCEC3500
HORIZONTAL INSTALLATION

Bottom view

B = 1400
E = Ø355
H = 2250

1 = G4 filter efficiency
2 = Condensate drain


BRUCEC3500
HORIZONTAL INSTALLATION

Front view

F = 860


BRUCEC3500
HORIZONTAL INSTALLATION

Side view

C = 650

1 = Ispection panels


BRUCEC3500
HORIZONTAL INSTALLATION

Front view

D = 365
G = 860


BRUCEC3500
HORIZONTAL INSTALLATION

Top view


BRUCEC3500
VERTICAL INSTALLATION

Right side view

F = 860


BRUCEC3500
VERTICAL INSTALLATION

Inspection side

B = 1400
H = 2250
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUCEC3545


BRUCEC3500
VERTICAL INSTALLATION

Left side view

D = 365
E = Ø355
G = 860


BRUCEC3500
VERTICAL INSTALLATION

Upper view

C = 650

1 = Ispection panels


BRUCEC4500
HORIZONTAL INSTALLATION

Bottom view

B = 1650
E = Ø400
H = 2500

1 = G4 filter efficiency
2 = Condensate drain


BRUCEC4500
HORIZONTAL INSTALLATION

Front view

F = 985


BRUCEC4500
HORIZONTAL INSTALLATION

Side view

C = 650

1 = Ispection panels


BRUCEC4500
HORIZONTAL INSTALLATION

Rear view

D = 365
G = 985


BRUCEC4500
HORIZONTAL INSTALLATION

Top view


BRUCEC4500
VERTICAL INSTALLATION

Right side view

F = 985


BRUCEC4500
VERTICAL INSTALLATION

Inspection side

B = 1650
H = 2500
L = 100

1 = G4 filter efficiency
2 = Condensate drain
3 = Kit support points MSPBRUCEC3545


BRUCEC4500
VERTICAL INSTALLATION

Left side view

D = 365
E = Ø400
G = 985


BRUCEC4500
VERTIKALER EINBAU

Ansicht von oben

C = 650

1 = Inspektions-paneele

Performance diagrams

BRUCEC700

HORIZONTAL INSTALLATION

Useful static pressure

BRUCEC700

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUCEC700

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUCEC1000

HORIZONTAL INSTALLATION

Useful static pressure

BRUCEC1000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUCEC1000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H

BRUCEC2000

HORIZONTAL INSTALLATION

Useful static pressure

BRUCEC2000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUCEC2000

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUCEC3500

HORIZONTAL INSTALLATION

Useful static pressure

BRUCEC3500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUCEC3500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

BRUCEC4500

HORIZONTAL INSTALLATION

Useful static pressure

BRUCEC4500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

BRUCEC4500

VERTICAL INSTALLATION

HEAT EXCHANGER EN 308 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.
