PLUS:

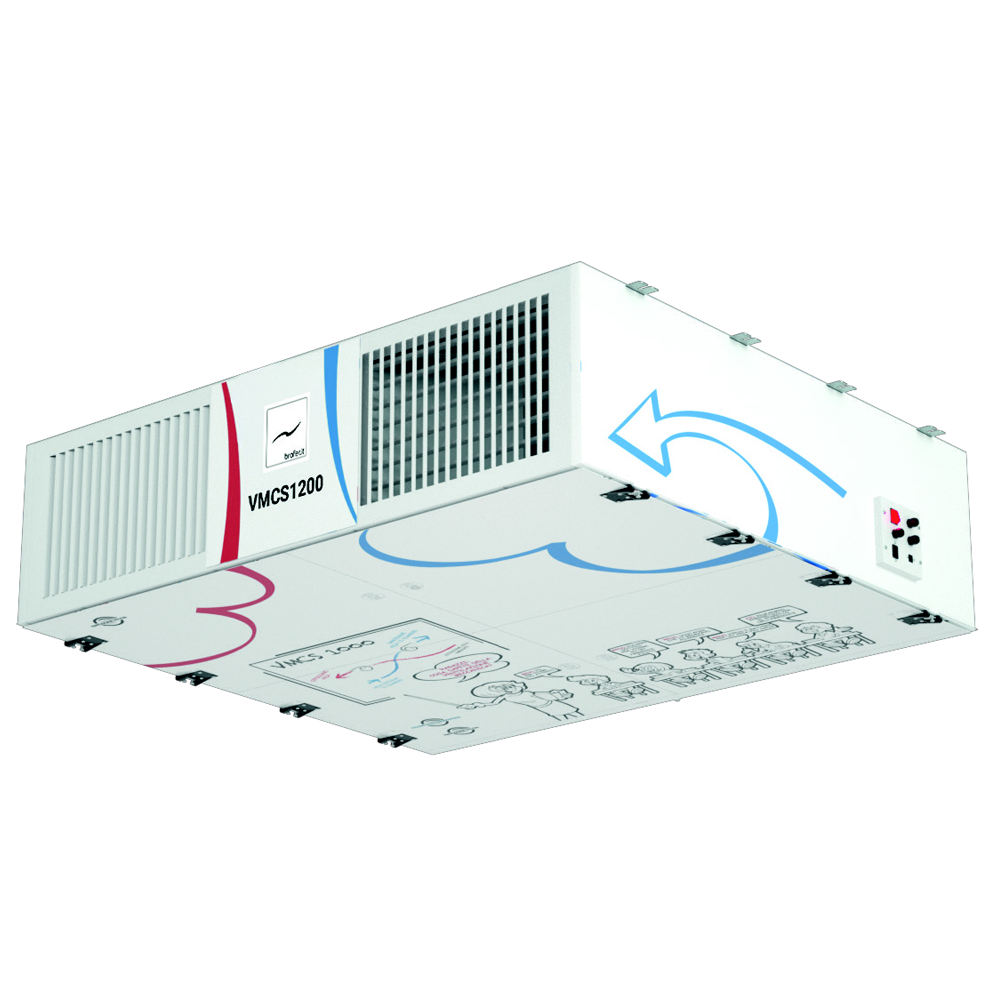

DECENTRALIZED VMC HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY

HEAT RECOVERY:

high efficiency plastic counter-current exchanger. Complete with automatic bypass and condensate collection basin.

STRUCTURE:

self-supporting soundproof sandwich structure. Equipped with removable panels for ordinary and extraordinary maintenance operations. Complete with brackets for ceiling fixing.

FANS:

double inlet centrifugal fans with directly coupled brushless EC electric motor with constant flow operation.

FILTERS:

G4 efficiency on return air. M5 efficiency on fresh air.

ADDITIONAL:

OPTIONAL: – CO2 control (CO2RF) – F7 efficiency filter (VMCS1200 F7) – modbus communication device (MODBUSRF)

e-energy-saving

filtro-elettronico

Technical data


	VMCS1200 - VMCS1200FE
Replacement airflow	1200 mc/h
Extraction airflow	1200 mc/h
Thermal recovery efficiency*	85 %
Installed power single fan (w)	350
Replacement air filtration	M5 ISO COARSE ≥ 70 %
Extraction air filtration	G4 ISO COARSE ≥ 65 %
Replacement air filtration (optional)	F7 ISO e PM1 ≥ 65 %
Electronic filtration	Optional
CO2 control	Optional

* (UNI EN 308) fresh air: 5 ° C 72% RH / expulsion air: 25 ° C 28% RH

Dimension

Bottom View

B = 1400
H = 1600

Side view right

1 =
Power supply input
Controller input
Power button

front view

1 = Inspection doors

Side view left

C = 426

Rear view

E = Ø355
L = 623
M = 344

1 = Condensate drain - Vitreous pipe Ø20

Top view

F = 1628
G = 1050

Performance diagrams

STANDARD HEAT EXCHANGER EN 308 CERTIFIED

Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.

STANDARD HEAT EXCHANGER EN 308 CERTIFIED

Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.

Download documents

vmcs1200
