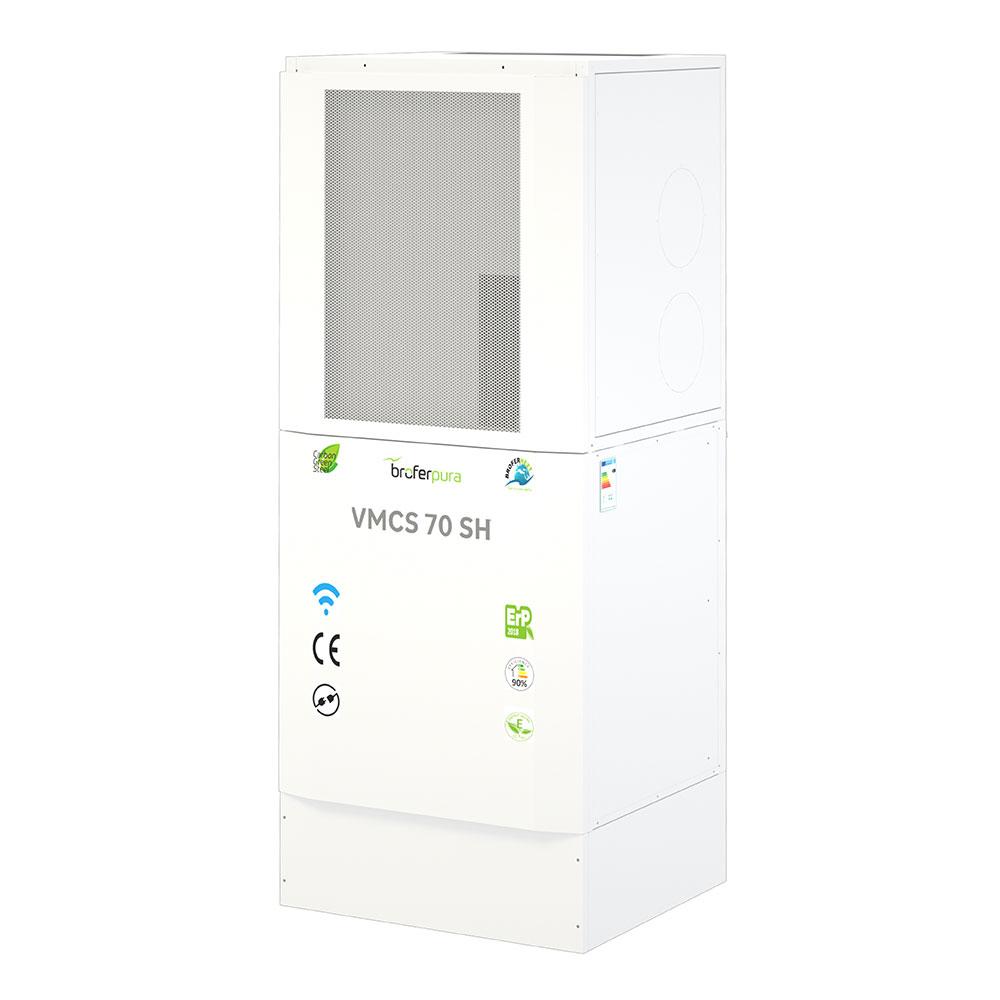

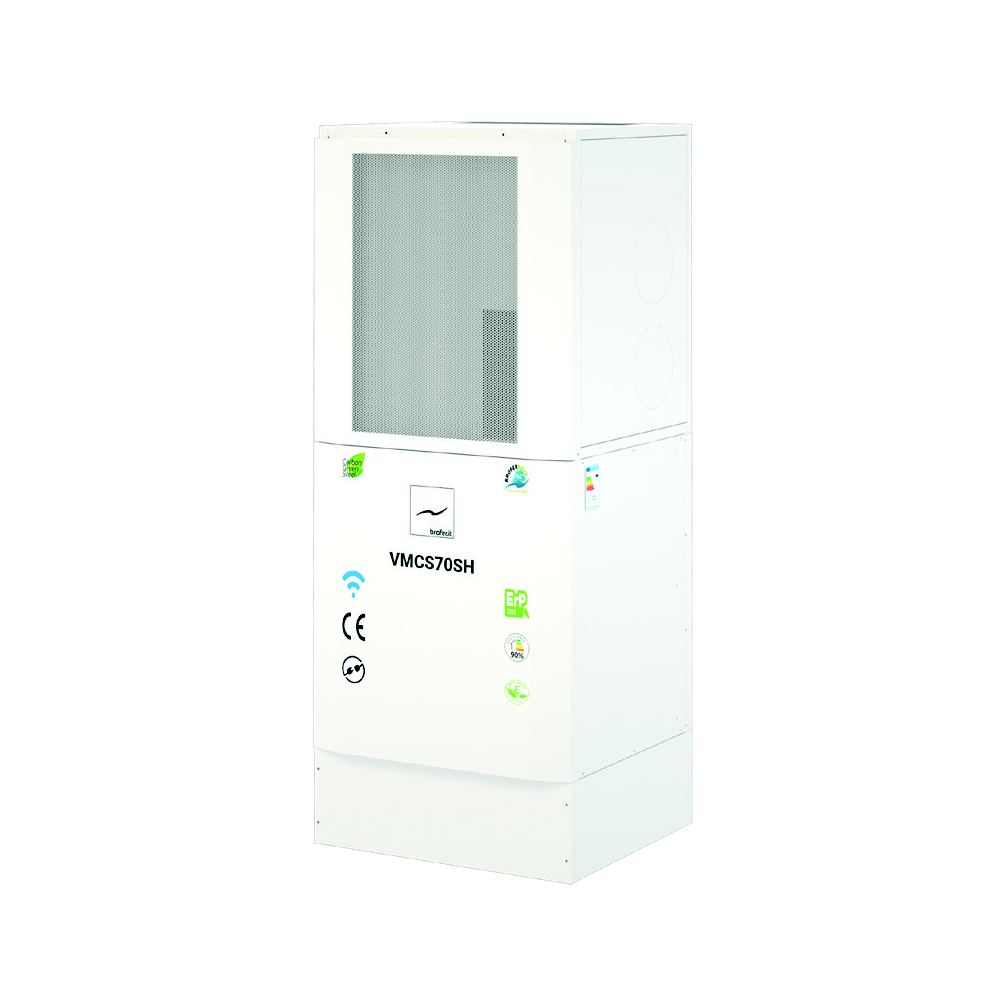

DECENTRALIZED HEAT RECOVERY UNIT WITH VERY HIGH EFFICIENCY AND WITHWIRELESS PLUG AND PLAY CONTROL SYSTEM INCLUDED
AUTOMATIC BY-PASS INCLUDED
free standing EPS seal with outer coat painted steel complete of filters ex traction system and drain condensate.
plug fan type with EC Brushless engine.
the units are equipped with standard filter cells synthetic fiber efficiency G4, optional F7 efficiency on fresh air.
Soundproofed plenum box for air distribution and diffusion.
OTIONAL:
· CO2 control (CO2RF)
· F7 efficiency filter (FTRSV48)
· modbus communication device (MODBUSRF)
|
Nominal air flow (mc/h) |
600 |
|
FANS (DATA FOR EACH FAN) |
|
|
Installed power (W) |
169 |
|
Current (A) |
1,5 |
|
Rated voltage (V) |
230 |
|
Frequency (HZ |
50 |
|
Speed (nr) |
3+(1 booster) |
|
FILTERS |
|
|
Efficiency Standard |
G4 ISO COARSE > 65% |
|
Efficiency Optional |
F7 ISO e PM1 > 65% |
front view
B = 702
H = 1700
I = 228
4 = Return air
Side view
E = Ø200
M = 437
O = 205
R = 324
S = 250
T = 1126
1 = Exhaust air
2 = Fresh air
Top view
C = 642
3 = Supply air
HEAT EXCHANGER EN 13147:7:2011 CERTIFIED
Summer efficiency chart
Fresh air: 32 °C / 50 % R.H.
Return air: 26 °C / 50 % R.H.
HEAT EXCHANGER EN 13147:7:2011 CERTIFIED
Winter efficiency chart
Fresh air: -5 °C / 80 % R.H.
Return air: 20 °C / 50 % R.H.
PERFORMANCE EN 13141:7:2011 CERTIFIED
Useful static pressure
